Gate Track Repair

When an automated sliding gate derails or grinds to a halt, the issue usually sits right at ground level. A bent, sunken, or shifted track puts immediate stress on the entire system. Instead of gliding freely, the gate drags, forcing the opener motor to work double-time until gears strip or internal limit switches fail. For homeowners and property managers, prompt gate track repair keeps access points secure and prevents small alignment issues from turning into expensive motor replacements.^[2]

Environmental factors and regional soil conditions can create challenges for driveway gate tracks. Expansive clay soils can expand when saturated and shrink during dry spells. This continuous ground movement can shift concrete pads and driveways beneath gate tracks, causing steel rails to bow, sink, or pull away from their anchors. Professional gate technicians, such as the team at Sequoia Gate Repair Service Houston, provide on-site track leveling, welding, and alignment services to address these issues.^[3]

What Causes a Sliding Gate to Jump Its Track?

A sliding gate derails when the physical path of travel no longer lines up with the gate wheels. While physical impacts do occur, most track failures develop over time through ground shifting and mechanical wear.^[4]

Ground Movement and Foundation Settling

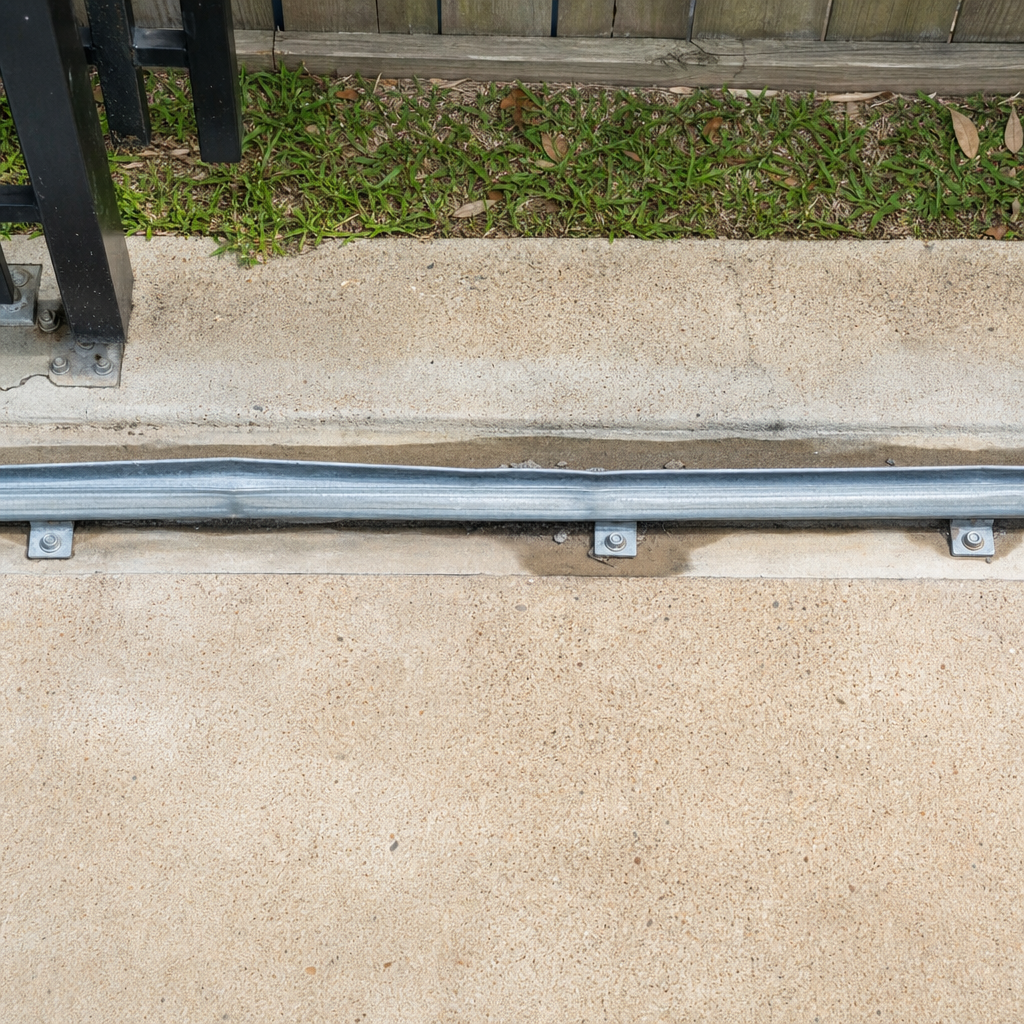

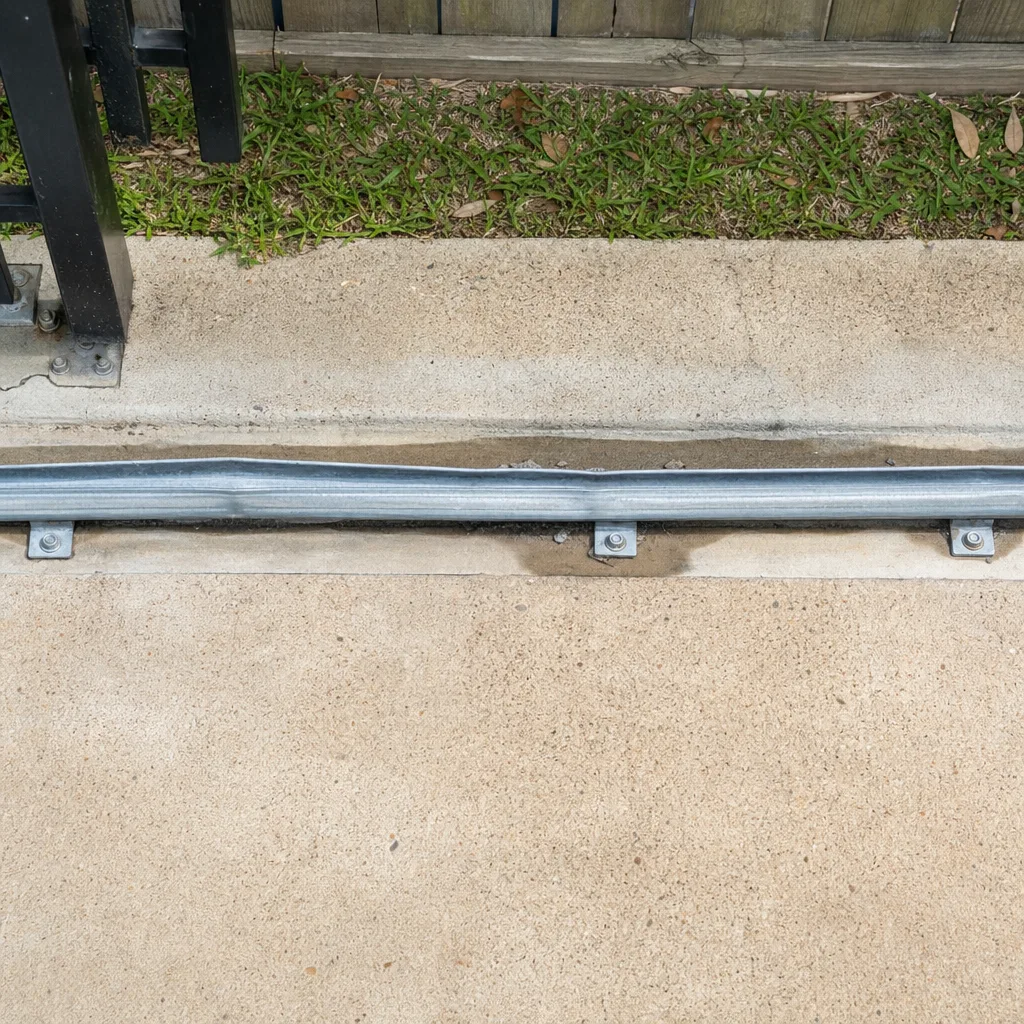

Most sliding driveway gates run along an inverted V-track or round pipe track anchored into a concrete apron or runner. When underlying soil heaves or settles, the concrete beneath the track can crack or tilt. Even a slight quarter-inch dip across a twenty-foot span creates enough lateral resistance to lift a V-groove wheel off the apex of the rail, causing the gate to jump the track during opening or closing cycles.

Seized Rollers vs. Warped Rails

According to Sequoia Gate Repair Service Houston, determining whether the problem lies in the track or the wheel assembly is essential for a lasting repair:^[1]

• Worn or Seized Rollers: If internal roller bearings fail due to road grit, dirt, or water intrusion, the wheel stops rotating freely and begins skidding along the rail. This creates flat spots on the metal wheel. The gate will squeak, chatter, or vibrate along its entire travel path.
• Warped or Sunken Tracks: If the gate moves smoothly for several feet and then suddenly binds, jerks, or hops at a specific spot, the rail itself is bent, pinched, or unanchored.

Replacing rollers without fixing a warped track will quickly destroy the new wheels, while straightening a rail will not help if the roller bearings are completely locked.

Debris and Anchor Failure

Loose gravel, heavy lawn debris, and sand can pack into the track groove, acting as a ramp that kicks wheels off the rail. Over time, repeated gate cycling over high-friction spots can also snap concrete anchor bolts, allowing sections of the steel rail to float or wobble under the weight of heavy iron gates.

Can a Bent Sliding Gate Track Be Repaired or Does It Need Replacement?

A damaged track does not always require a complete tear-out. In most cases, targeted repairs restore the existing rail to proper working condition without the expense of pouring new concrete.

Heat Straightening and Anchor Resetting

If a steel track has a localized bend caused by a delivery vehicle or minor ground movement, technicians from Sequoia Gate Repair Service Houston can heat the steel, straighten it back to true alignment, and secure it with new heavy-duty wedge anchors. This method works well when the underlying concrete pad remains structurally sound.^[5]

Sectional Cut-and-Weld Splicing

When a section of track is severely crushed, gouged, or rusted through, full replacement of the entire track is rarely necessary. Technicians use a step-by-step splicing method:

1. The damaged section of steel rail is cut out with a demo saw.
2. The concrete surface is ground flat and cleaned of debris.
3. A new matching section of heavy-gauge steel track is anchored into the foundation.
4. The joints are welded, ground flush, and cold-galvanized to prevent rust and ensure smooth roller travel.

Protecting the Automatic Opener Motor

Operating a sliding gate on a compromised track puts severe mechanical drag on the drive system. Whether your system uses an overhead chain, continuous loop, or rack-and-pinion drive, forcing the motor to push through track friction will burn out start capacitors, strip internal drive gears, and snap chains. Leveling the track removes this resistance and protects your opener investment.

Cost Factors for Gate Track Repair

The cost to repair a sliding gate track depends on the scope of the structural damage, the condition of the rollers, and whether mobile welding is required.

Service Type	Typical Scope of Work	Welding Required	Primary Benefit
Standard Alignment & Re-Anchoring	Straightening minor rail bends, clearing debris, resetting concrete anchors	No	Quick restoration for minor settling or loose rails
Sectional Track Splicing	Cutting out damaged steel sections, welding in new rail, grinding joints flat	Yes	Permanent fix for crushed or severely warped sections
Full Foundation & Track Rebuild	Replacing the full rail length, addressing concrete grade beam issues, replacing rollers	Yes	Complete reset for failing foundations or heavily corroded tracks

Key Variables Affecting Repair Pricing

• Track Gauge and Material: Heavy-gauge galvanized steel or solid stainless track designed for commercial gates costs more in materials than lightweight residential tracks.
• Foundation Condition: If the concrete beneath the track is cracked or crumbling from soil movement, securing new anchors requires deeper drilling, structural epoxy, or concrete patching.
• Associated Roller Damage: Gates that have run off-track often need new sealed-bearing steel or UHMW wheels to replace flat-spotted components.

Frequently Asked Questions About Gate Track Repair

How much does gate track repair cost?

Basic track realignment and re-anchoring typically represent the most budget-friendly repair option. If the track requires sectional steel splicing, mobile welding, or roller replacement, costs increase based on labor and replacement parts. A professional technician from Sequoia Gate Repair Service Houston can provide an on-site assessment and written estimate.

How quickly can an emergency gate track repair technician arrive?

When a sliding gate jumps its track, it can leave a property unsecured or trap vehicles in a driveway. Many professional gate repair providers, including Sequoia Gate Repair Service Houston, offer prompt scheduling and emergency service options depending on local availability.

Can a bent sliding gate track be repaired, or does it need full replacement?

Most bent tracks can be repaired. Unless the steel is rusted through along its entire length or the concrete footing has completely collapsed, technicians can straighten the rail or cut out the damaged portion and weld in a replacement section.

How do I know if the issue is the track or the rollers?

If the gate grinds continuously along the entire driveway, worn roller bearings are the primary suspect. If the gate rolls fine for most of the run but stalls, jumps, or binds in one specific area, you are dealing with a bent or uneven track.
